rincian produk

Rumah > Produk >

6W 9W 12W 316L Stainless Steel Pool Light | IP68 LED Submersible

Produk

Lampu Kolam Renang Bawah Air LED

6W 9W 12W 316L Stainless Steel Pool Light | IP68 LED Submersible

MOQ:	Tidak ada moq
kemasan standar:	1 buah/kotak, 8 buah/karton
Periode pengiriman:	10-25 hari
Cara Pembayaran:	Western Union, T/T, L/C
Kapasitas pasokan:	100.000 pcs/bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

COMI Lighting

Sertifikasi

CE, RoHS

Nomor model

Nama Produk:

Tempat Bawah Air LED Stainless Steel IP68 316 untuk Penerangan Air Mancur Lanskap

Kekuatan:

6W (Warna Tunggal), 8W (RGB), 11W (RGBW)

Tegangan Masukan:

24VDC atau 12VDC

Sumber Cahaya:

3 buah * LED SMD 2W/3W/4W, atau 1 buah LED COB

Warna Terang:

warna tunggal, RGB, RGBW

Efisiensi Cahaya:

60~95LM/W

Bahan:

Sus 316 stainless steel

Cara pemasangan:

permukaan dipasang dengan braket berbentuk U (termasuk)

Tingkat IP:

Jaminan:

2~5 tahun

panjang kabel:

3 meter atau panjang yang dibuat khusus

Aplikasi:

Untuk kolam, kolam renang, air mancur, penerangan air terjun kolam

Bagian Pemasangan:

Braket berbentuk U dan tripod opsional

Jangka hidup:

50000 Jam

Opsi Mode Kontrol:

HIDUP/MATI, DMX512, 0-10V, TRIAC, DALI, PWM

Kuantitas min Order:

Tidak ada moq

Kemasan rincian:

1 buah/kotak, 8 buah/karton

Waktu pengiriman:

10-25 hari

Syarat-syarat pembayaran:

Western Union, T/T, L/C

Menyediakan kemampuan:

100.000 pcs/bulan

Menyoroti:

316L stainless steel pool light

IP68 LED submersible light

6W 9W 12W underwater spot light

Deskripsi Produk

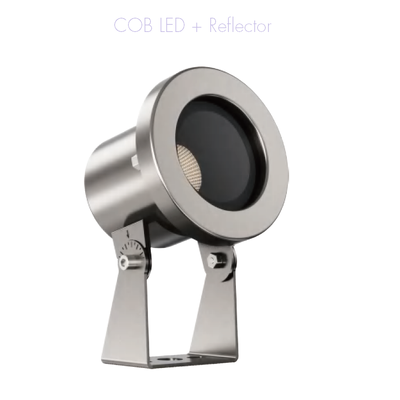

316L Stainless Steel LED Pool Light

6W (Single Color) | 9W (RGB) | 12W (RGBW) | IP68 Submersible

Product Overview

Designed for landscape architects requiring both visual appeal and technical performance, this 316 stainless steel LED underwater light features a brushed SUS 316 stainless steel finish that complements modern and traditional designs. The compact 95mm diameter housing is ideal for surface mounting on pool walls or ground surfaces.

Design Specifications

Lamp body dimensions: Φ95 × T102 × H149mm. The housing is precision-machined from solid SUS 316L stainless steel, available in brushed, polished, or passivated finishes. Features 10mm step tempered glass that sits flush with the housing for a clean, streamlined profile.

Light Quality & Performance

COB LED versions with CREE chips deliver 80-95 lm/W with CRI >80 for precise color rendering. Available in 3000K warm white for residential pools or 6000K cool white for commercial installations. Single colors include red, blue, green, yellow, and pink. RGB and RGBW versions provide full color spectrum access with dedicated white channel.

Beam Control Options

Optical lenses and reflectors available in 10°, 30°, 45°, 60°, and 90° beam angles. Create narrow accent beams for dramatic focal points or wide flood coverage for wall washing applications. The 90° beam angle is ideal for broad surface illumination.

System Integration

Compatible with DMX512 for seamless integration with landscape lighting controllers. These underwater fixtures can be synchronized or asynchronized with above-ground path lights, garden spots, and architectural uplights for cohesive nighttime design.

Installation

Surface mount using included U-shaped bracket with angle adjustment capability for precise aiming. Optional SUS 316 stainless steel tripod available for alternative mounting applications.

Project Support

We provide DIALux evo and AutoCAD design files for lighting plan integration. Our technical support team assists with control system design for complex RGB installations.

Delivery & Ordering

No minimum order quantity on standard orders
10-25 day delivery timeframe
Custom finishes available on volume orders

Material Specifications

Component	Specification
Front Cover & Housing	Molding shaped SUS 316 L# stainless steel housing
Gasket	EPDM gasket
Window Glass	Step tempered glass, T=10mm
Lens	Optical lens, efficiency ≥ 85%
Cable Gland	IP-68 PG-11 copper with nickel-coated
PCB	Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0w/mk
Driver	Constant current output - Single color LED = 2-circuit output - RGB 3in1 LED = 6-circuit output
Application Environment	Water temperature between -20℃ to 40℃, less than 1 meter depth
Electrical Connection	- 1× cable 3meters H05RN-F 2×1.0mm² to open wires (Single color) - 1× cable 3meters H05RN-F 4×0.75mm² to open wires (RGB) - 1× cable 3meters H05RN-F 5×0.75mm² to open wires (RGB DMX, Optional)
Installation	U-shaped Bracket (for surface mounting on Wall/ground/ceiling)
Optional Accessory	SUS 316 stainless Steel Tripod
Dimmable or DMX512	- Standard non-dimmable - Optional DALI, 1-10V, PWM Dimmable or DMX 512 controllable support

Technical Specifications

Part Number	Light Source	CRI (White only)	Lens Degree (Θ1/2)	Input Voltage	Power Consumption	Luminance	IK Rate
B5BC0110	1×8W CREE COB LED	Ra>80	15°, 24°, 36°, 60°	24VDC	6.5W	Cool white=555LM Warm white=458LM	10
B5BC0356	3×1W Osram or Cree Single color LED	Ra>80	10°, 25°, 40°, 60°, 80°, 10×45°, 25×45°	24VDC	3W	Cool white=216LM Warm white=180LM	10
B5BC0357	3×2W Osram or Cree Single color LED	Ra>80	10°, 25°, 40°, 60°, 80°, 10×45°, 25×45°	24VDC	6.3W	Cool white=451LM Warm white=476LM	10
B5BC0318	3×2.5W RGB 3-in-1 Full color LED	-	25°, 40°, 60°, 80°, 10×45°, 25×45°	24VDC	8W	200LM	10
B5BC0320	3×3.5W RGBW 4-in-1 Full color LED	-	25°, 40°, 60°, 80°, 10×45°, 25×45°	24VDC	11W	385LM	10

Specification is subject to change without notice.

Product Images

Applications

IP68 outdoor submersible LED underwater lights are suitable for: swimming pools, fountains, ponds, marine environments, yachts, boats, docks, transoms, aquariums, water features, landscape lighting, outdoor use, underwater use, saltwater environments, and freshwater applications.
